Energy-Saving Smart heating Thermostat WiFi/LoRaWAN Optional, 7-Day Schedule, for Factory/Warehouse Temperature Control

Product Advantages

1. Multi-System Compatibility with Wide Scene Coverage: Compatible with 2/4-pipe fan coil AC systems, AC + electric heating, underfloor heating, etc. Suitable for multiple scenarios including homes, schools, hotels, wine cellars, and hospitals, satisfying both commercial and residential needs.
2. Smart Scheduling + Energy Saving to Reduce Consumption: Supports 7-day/weekday-weekend/24-hour timing, with up to 4-6 events per day. Equipped with holiday mode, automatic daylight saving time adjustment, and defrost protection. Standby power consumption ≤0.5W, balancing personalization and energy efficiency.

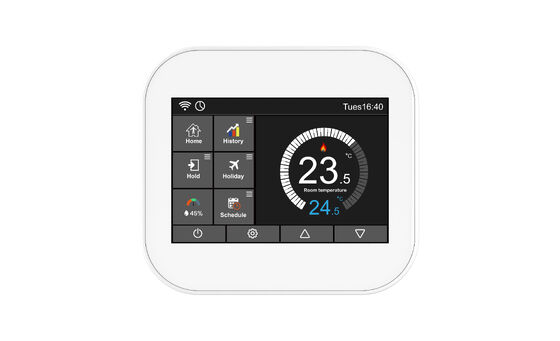

3. Humanized Operation for Friendly Experience: 3.5-inch 320x480 pixel TFT capacitive touch screen with sensitive operation. Supports 8 languages and °C/°F switching, plus a touch screen lock function, making it easy to use for both the elderly and staff.
4. Wide Voltage Adaptation for Flexible Installation: Compatible with dual voltages (24VAC/230VAC 50/60Hz) and wall-mounted installation. The body is only 96×86×13.8mm and ≤200g, saving installation space and compatible with circuits in different regions.

MC6-Heating MAIN FEATURE
24vac, 230vac power supply
3.5" tft color touch screen
Humidity sensor, Ambient light sensor
Wi-Fi connective(Option)
Modbus485 RTU,TCP(Option)
Hotwater control
7 day, weekday/weekend, 24hours schedule
Four or six events per day
Auto sync time and date
Automatically adjusts to daylight saving time
Temperature control range 5°c-45°c
History data tracking diagram(Up to 4 weeks)
Energy consumption statics
Defrost protection
Modbus RS485 ,modbus TCP(option)
Work mode: Holiday, Home/Away, Boost(Hold)
Multi language(9 languages)
C/F temperature display
12/24 hours
Touch screen lockout
